Multiswitch

MS5532B / MS5528B / MS5524B / MS5520B / MS5516B / MS5512B / MS558B / MS554B

TV & SAT TV Installation Components

Multiswitch installations allow to distribute satellite and terrestrial programs to many users, being one of the forms of satellite master antenna TV systems (SMATV). Community systems are generally more reliable and ensure better quality, due to better, professional equipment. It starts from the satellite dish - at least 110cm, ensuring high gain and insensitivity to weather conditions.

Community installation eliminates individual dishes and antennas on roof, facades and balconies, improving aesthetics of the building.

• 4 satellite inputs and 1 terrestrial input
• 8 to 32 subscriber outputs for end users
• Cascadable type
• Ideal for middle SMATV systems
• Built-in amplifier circuit to compensate cable loss
• Low insertion loss and high isolation
• Compact appearance and easy-to-install
• Feed from Single LNB, Twin LNB, Quattro LNB or quad LNB through 22kHz generator
• SAT IF selected by 13/18V, 0/22kHz (13V/0kHz, 18V/0kHz, 13V/22kHz and 18V/22kHz)
• With external power adapter
• OEM and ODM services are provided

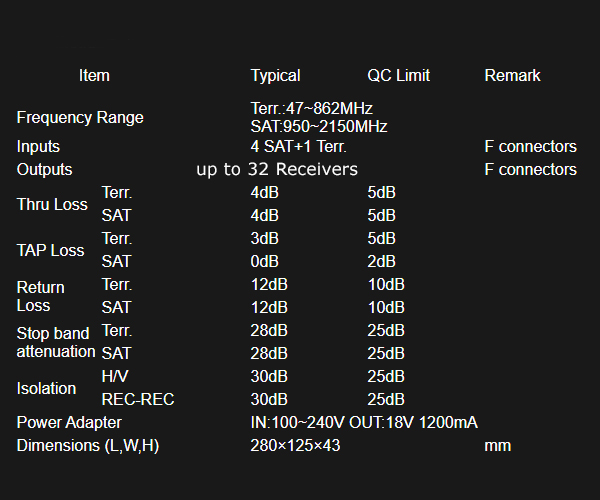

• SPECIFICATIONS
